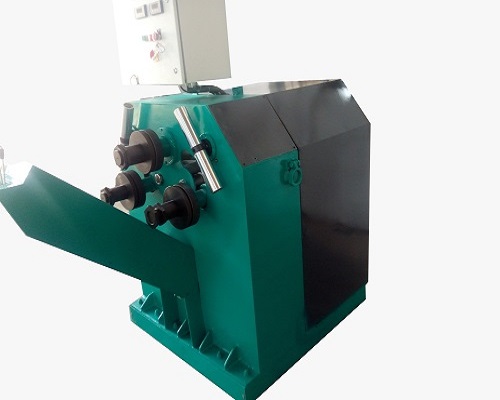

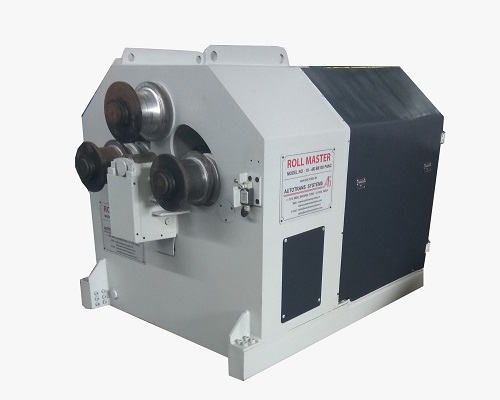

Hydraulically Operated Three roll Planetary axis - Section Bending Machine (Model No. 3RSB---PAMH)

This is low cost machine model available with pre bending facility and most useful for small and medium fabrication workshop.

❮ ❯

Advantages

Specially developed hydraulic circuit requiring minimum maintenance
Since all rolls are mounted in roller bearings, the electrical consumption is reduced by 50% compared to conventional pyramid type machines
Since all roll movement and roll rotation are through hydraulic actuators, only one person is required to operate the machine with minimal effort

Special Features

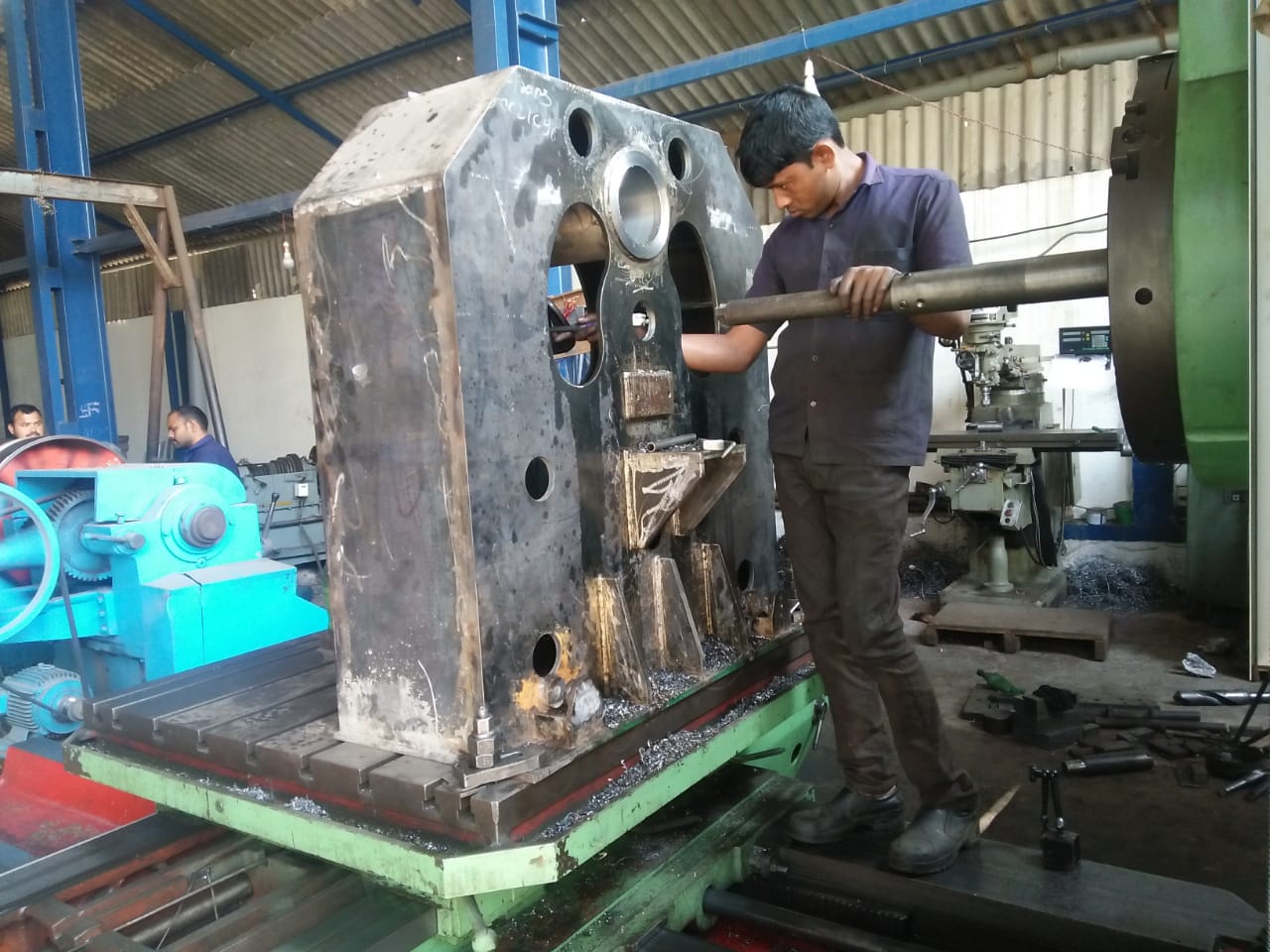

The machine frame is built from all tested steel plate material. This frame is subjected to stress releaving, sand blasting and epoxy primer painted for corrosion free long lasting machine life. The complete body is machined in cnc machine to achieve built in accuracy.

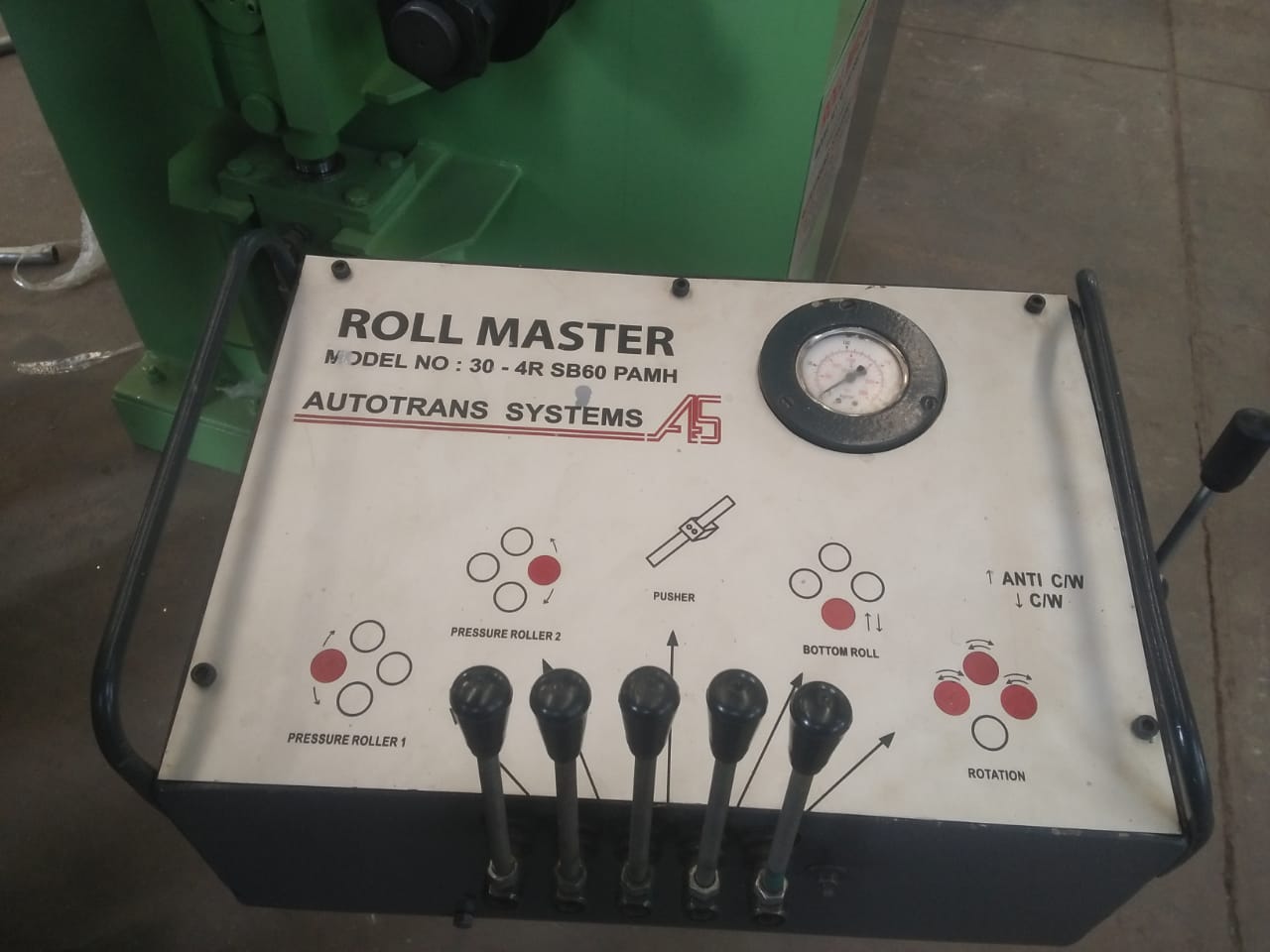

The side roll up-down movement and roll rotation are fully hydrualic. The side roll up-down position is indicated by digital meter provided on control desk.

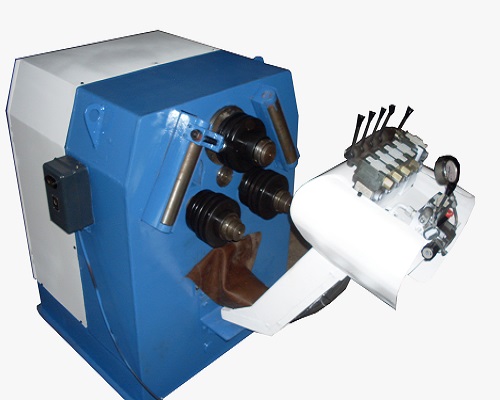

In this type of model, all hydrualic actuators movement are through manually operated mobile control walves.

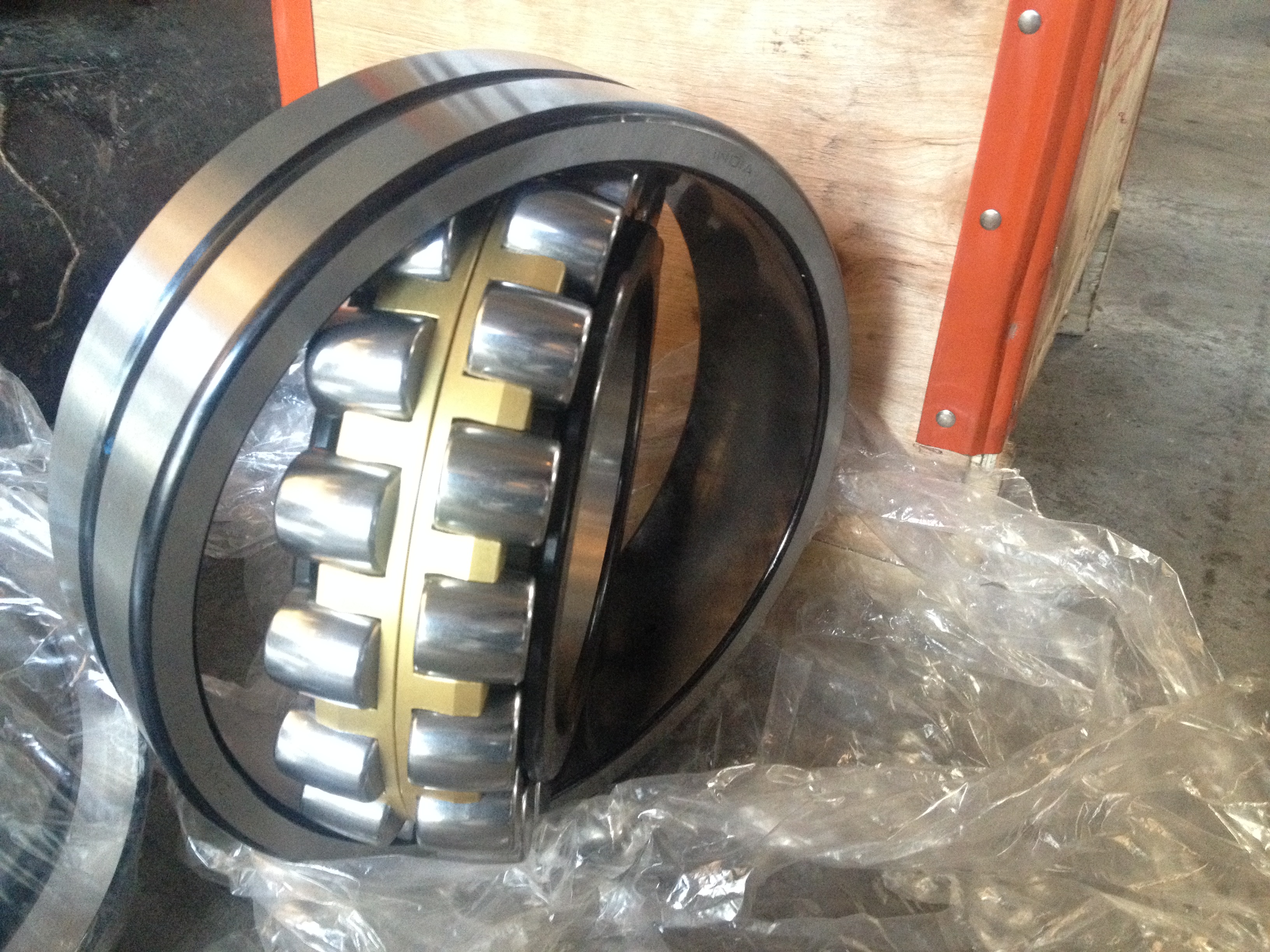

All our machine rolls are mounted in heavy duty roller bearings. Each roller is fitted with two bearing per side (four bearing per roller).

The pusher roller assembly can be given as a option for coil forming application.

An optional feeder table can facilitate loading and machine operation by a single person only

Standard Featues

Both the bottom rolls are driven rolls
All rolls are manufactured in alloy steel material and duly hardened
Separate digital roll position meter for each side of roll makes it easy to maintain precise distance between top and side rolls

Optional Featues

All 3 rolls positively driven for thin section rolling
Central support for large diameter section rolling
Feeder table
Section rolling die sets as per profile
